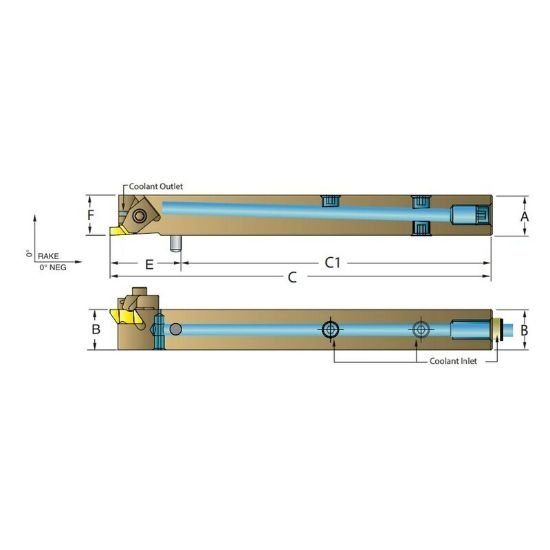

Picture of ANSL1616-H02 Dorian 61091 Grooving,Threading Stick Tool 0.6299 16.00mm Shank

ANSL1616-H02 Dorian 61091 Grooving,Threading Stick Tool 0.6299 16.00mm Shank

Part Number: DOR61091

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: 1002111
Vendor: Sussex Tool and Supply
$183.46

DORIAN stick tool has 0.629 shank. It connects to machine side with stick tool. Made of steel material. Connection type is stick tool.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Stick Tool
  • Machine Side (Toolpost): STICK TOOL0.6299

Grades & Coatings

  • Alternate Description: DORIAN 61091 Top Notch Grooving,Threading Stick Tool0.6299 Positive DORIAN ANSL1616-H02 Stick Tool Top Notch Type Square 0.629 Shank 3.940 OAL ANSL1616-H02 ANSL1616-H02.

Other Details

  • Brand: DORIAN
  • Shipping State: TEXAS
  • Made In Usa: No
  • Type Of Tool: Stick Tool

Technical Overview

What It Does

Grooving, threading. Used in machine toolpost. Performs cutting functions with square shank.

Composition

Steel material. Shank size 0.6299. Overall length 16.00mm.

Typical Uses

Installed in toolpost. Operated on machine. Applied for grooving and threading tasks.

Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Stick Tool
Made In USA No
Tool Material Steel
Machine Side (Toolpost) STICK TOOL0.6299
Machine Side (Toolpost) Connection Type Stick Tool
Overall Length 3.9400 100.08MM
Shank Or Pilot Diameter 0.6299 16.00MM
Coolant Thru Thru Coolant
Mach Side Connection Size 0.6299 16.00MM
Type of Tool Stick Tool
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TOP NOTCH
Insert Shape Or Cutter Pocket Shape Top Notch
Insert Type Positive
Insert Size (IC) 2
Hand Left Hand
Inter Or Extern External
Insert Type Or Orientation Top Notch
Tool Overhang 0.9840
Tool Width 0.6300
