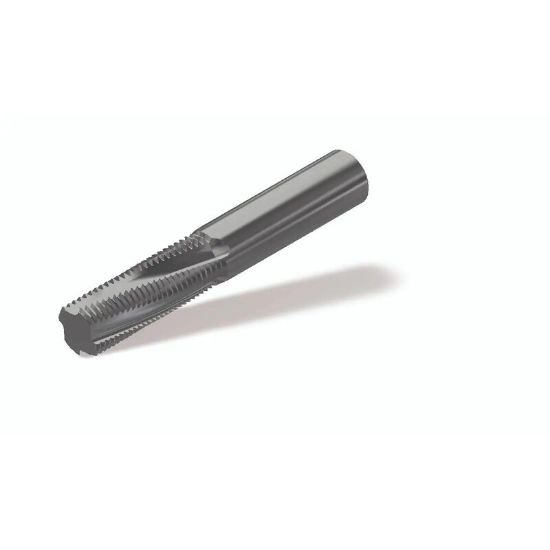

Picture of Advent Tool 142714-1CSNPTFD190C Carbide Thread Mill 27.00TPI NPTF 0.190 Cutter Diameter Cylindrical 0.2500 Shank TiN

Advent Tool 142714-1CSNPTFD190C Carbide Thread Mill 27.00TPI NPTF 0.190 Cutter Diameter Cylindrical 0.2500 Shank TiN

Part Number: ADV21566 ISO: 142714-1CSNPTFD190C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1291387
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ADVENT TOOL 142714-1CSNPTFD190C Carbide Thread Mill Straight 1/16" 27.00TPI NPTF TiN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Cutter Style Carbide Thread Mill
Thread Type NPTF
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Dia 0.1900 4.83MM
Length Of Cut 0.4000 10.16MM
Thread Pitch 27.00TPI
Thread Size 1/16"
Geometry & Angles
Helix Angle 0
Performance & Capacity
Cut Rating <53HRC Steel, Aluminum, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
