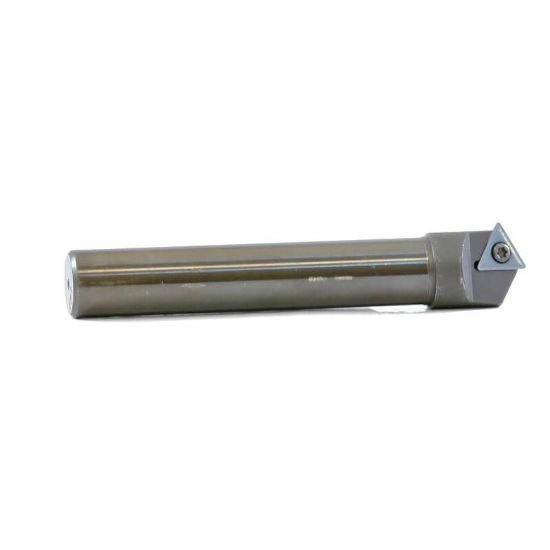

Picture of AB Tools SD-90T2 Triangle 90.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive

AB Tools SD-90T2 Triangle 90.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive

Part Number: ABTSD-90T2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000108
Vendor: Sussex Tool and Supply
$200.00

AB TOOLS SD-90T2 steel spot drill with 90 degree angle. Weldon 0.5000 connection. Made in USA. Shipping state: CALIFORNIA.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.5000

Grades & Coatings

  • Alternate Description: AB TOOLS SD-90T2 Triangle 90.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive SD-90T2 SD-90T2

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: Spot Drill

Technical Overview

What It Does

Performs spot drilling with 90.0° angle. Functions as chamfer mill and triangle tool. Designed for Weldon 0.5000 connection.

Composition

Made of steel. Constructed with Weldon 0.5000 positive design. Steel tool body.

Typical Uses

Used in spot drilling operations. Applied in machining with Weldon toolpost. Fits standard machine toolpost.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Mach Side Connection Size 0.5000 12.70MM - 1/2
Flutes Or Inserts 1
Type of Tool Spot Drill
Length Of Cut 0.2700 6.86MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TP
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 21
Depth Of Cut Max 0.2700
Cut Diameter Max 0.5700 14.48MM
Cutting Edge Angle 90.0°
Insert Screw 4-40
