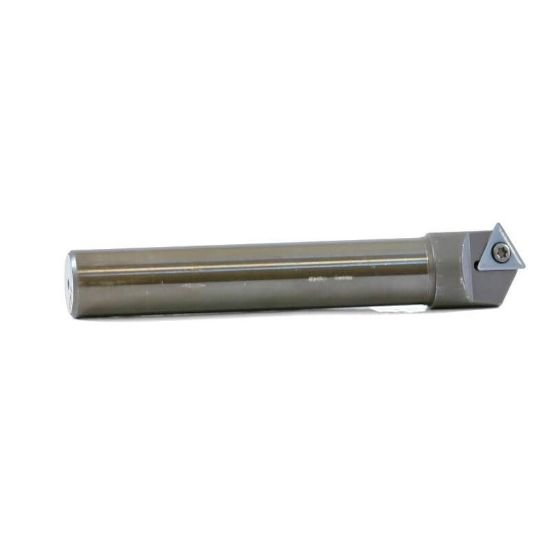

Picture of AB Tools SD-60D2 55.0 ° 60.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive

AB Tools SD-60D2 55.0 ° 60.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive

Part Number: ABTSD-60D2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000102
Vendor: Sussex Tool and Supply
$200.00

AB TOOLS SD-60D2 spot drill with 55.0 degree angle and 60.0 degree angle. Made in USA with steel tool. Weldon connection on machine post. Toolpost size WELDON0.5000.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.5000

Grades & Coatings

  • Alternate Description: AB TOOLS SD-60D2 55.0° 60.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive SD-60D2 SD-60D2

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: Spot Drill

Technical Overview

What It Does

Chamfer Mill Spot Drill performs spot drilling with positive angle. Operates at 55.0° to 60.0° angles. Used for precise hole initiation in metal work.

Composition

Steel tool material. Weldon 0.5000 connection. Made in USA.

Typical Uses

Spot drilling in metal components. Applied in machine tool operations. Used with Weldon toolpost.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Mach Side Connection Size 0.5000 12.70MM - 1/2
Flutes Or Inserts 1
Type of Tool Spot Drill
Length Of Cut 0.2400 6.10MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style DP
Insert Shape Or Cutter Pocket Shape 55.0°
Insert Type Positive
Insert Size (IC) 21
Depth Of Cut Max 0.2400
Cut Diameter Max 0.3100 7.87MM
Cutting Edge Angle 60.0°
Insert Screw 2.5MM
