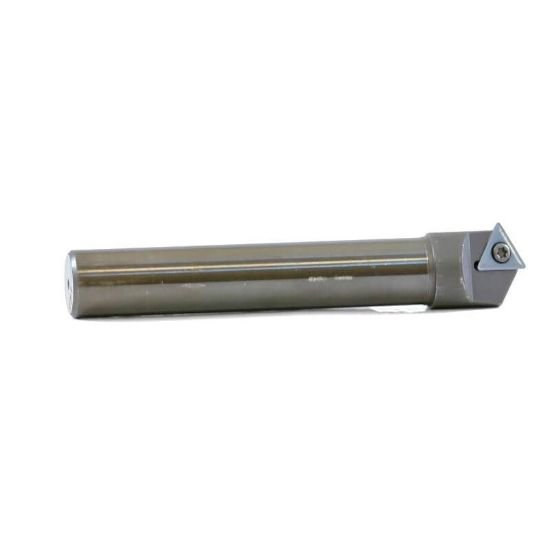

Picture of AB Tools SD-100T3 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.7500 Positive

AB Tools SD-100T3 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.7500 Positive

Part Number: ABTSD-100T3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000110
Vendor: Sussex Tool and Supply
$220.00

AB TOOLS SD-100T3 steel spot drill with Weldon 0.7500 connection. Made in USA, for 100 degree chamfer mill. Toolpost connection is Weldon 0.7500. Type is spot drill.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS SD-100T3 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.7500 Positive SD-100T3 SD-100T3

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: Spot Drill

Technical Overview

What It Does

Performs spot drilling with 100.0° angle. Functions as chamfer mill and triangle tool. Designed for Weldon 0.7500 connection.

Composition

Made of steel. Constructed with Weldon 0.7500 connection. Steel tool material.

Typical Uses

Used in spot drilling operations. Applied in machining with Weldon toolpost. Fits SD-100T3 toolpost standard.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 5.0000 127.00MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Flutes Or Inserts 1
Type of Tool Spot Drill
Length Of Cut 0.3500 8.89MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TP
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 32
Depth Of Cut Max 0.3500
Cut Diameter Max 0.8900 22.61MM
Cutting Edge Angle 100.0°
Insert Screw 4MM
