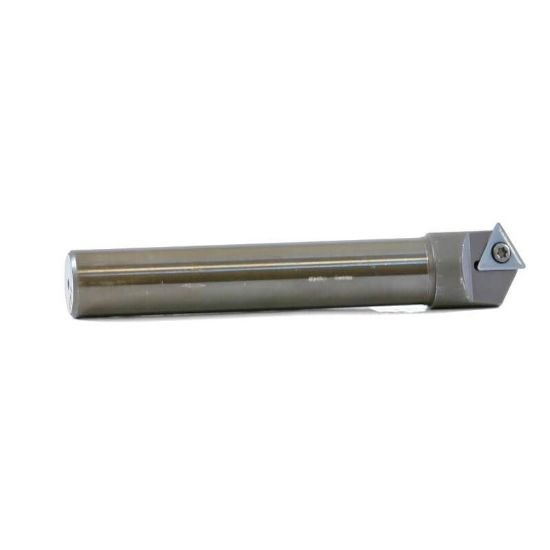

Picture of AB Tools SD-100T2 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive

AB Tools SD-100T2 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive

Part Number: ABTSD-100T2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000109
Vendor: Sussex Tool and Supply
$200.00

AB TOOLS SD-100T2 Triangle 100.0° Chamfer Mill Spot Drill. Weldon 0.5000 connection. Made in USA, shipping state California. Tool material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.5000

Grades & Coatings

  • Alternate Description: AB TOOLS SD-100T2 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive SD-100T2 SD-100T2

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: Spot Drill

Technical Overview

What It Does

Performs spot drilling with 100.0° angle. Functions as triangle and chamfer mill. Designed for Weldon 0.5000 connection.

Composition

Made of steel. Constructed with Weldon 0.5000 connection. Steel tool material.

Typical Uses

Used in machine toolpost with Weldon connection. Applied for spot drilling operations. Fits SD-100T2 tool type.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Mach Side Connection Size 0.5000 12.70MM - 1/2
Flutes Or Inserts 1
Type of Tool Spot Drill
Length Of Cut 0.2400 6.10MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TP
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 21
Depth Of Cut Max 0.2400
Cut Diameter Max 0.6100 15.49MM
Cutting Edge Angle 100.0°
Insert Screw 4-40
