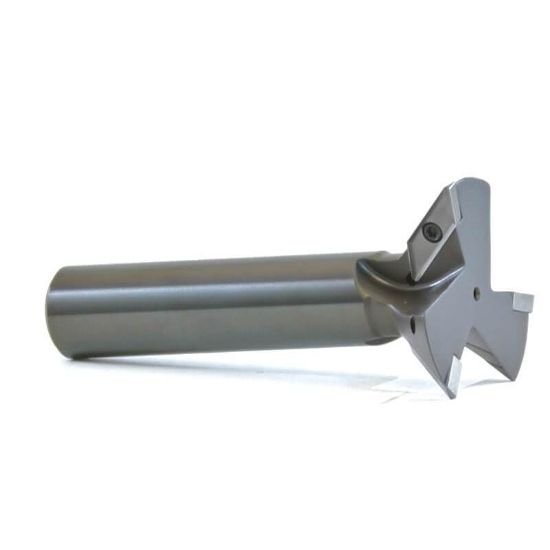

Picture of AB Tools DXL70-1.75 Parallelogram 70.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.7500 44.45mm - 1-3/4Cutter Dia

AB Tools DXL70-1.75 Parallelogram 70.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.7500 44.45mm - 1-3/4Cutter Dia

Part Number: ABTDXL70-1.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000065
Vendor: Sussex Tool and Supply
$405.00

AB TOOLS parallelogram end mill with 70 degree dove tail, Weldon 0.7500 positive 1.7500, 44.45mm cutter diameter. Made in USA, steel tool, Weldon connection. Shipping state: CALIFORNIA. Type: End Mill.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DXL70-1.75 Parallelogram 70.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.7500 44.45MM - 1-3/4Cutter Dia DXL70-1.75 DXL70-1.75

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Designed for end milling operations. Features dove tail shape for precise alignment.

Composition

Steel tool material. Weldon connection at machine side. Cutter diameter 1.7500 inches.

Typical Uses

Used in milling machines with Weldon toolpost. Fits 1-3/4 inch cutter diameter. Operates in 70.0° angle configuration.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.7500 95.25MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.7500 44.45MM - 1-3/4
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 90
Depth Of Cut Max 0.5600
Cutting Edge Angle 70.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
