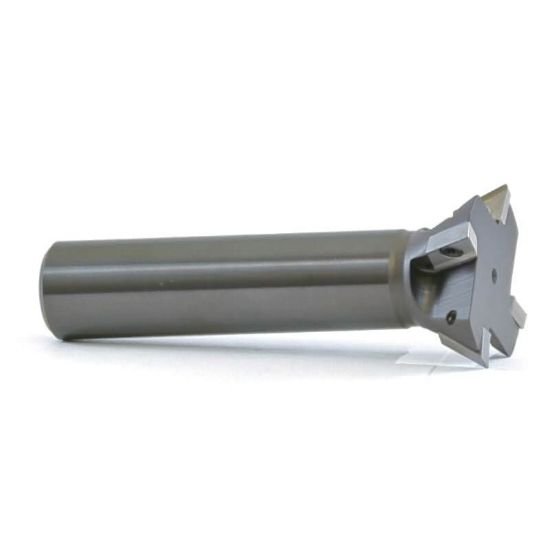

Picture of AB Tools DXL60-1.62 Parallelogram 60.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.6250 41.28mm - 1-5/8Cutter Dia

AB Tools DXL60-1.62 Parallelogram 60.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.6250 41.28mm - 1-5/8Cutter Dia

Part Number: ABTDXL60-1.62

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000056
Vendor: Sussex Tool and Supply
$330.00

AB TOOLS parallelogram end mill with 60.0 degree dove tail. Weldon 0.7500 positive 1.6250 41.28mm cutter diameter. Made in USA steel tool. Shipping state CALIFORNIA.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DXL60-1.62 Parallelogram 60.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.6250 41.28MM - 1-5/8Cutter Dia DXL60-1.62 DXL60-1.62

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Features dove tail design for precision. Used in machining operations with Weldon connection.

Composition

Made of steel. Includes Weldon 0.7500 connection. Dimensions: 60.0°, 1.6250, 41.28mm.

Typical Uses

Machining with end mill function. Fits in machine toolpost with Weldon connection. Operates in setups requiring 1-5/8 cutter diameter.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.6250 41.28MM - 1-5/8
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 60
Depth Of Cut Max 0.6000
Cutting Edge Angle 60.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
