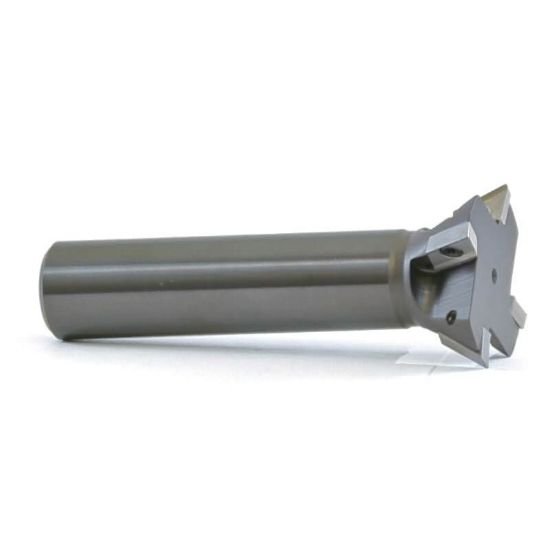

Picture of AB Tools DXL30-1.37 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.3750 34.93mm - 1-3/8Cutter Dia

AB Tools DXL30-1.37 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.3750 34.93mm - 1-3/8Cutter Dia

Part Number: ABTDXL30-1.37

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000050
Vendor: Sussex Tool and Supply
$305.00

AB TOOLS parallelogram end mill with 30.0 degree dove tail. Weldon 0.7500 positive 1.3750 cutter diameter 34.93mm. Made in USA, toolpost connection type Weldon. Tool material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DXL30-1.37 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.3750 34.93MM - 1-3/8Cutter Dia DXL30-1.37 DXL30-1.37

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Designed for dove tail end milling. Operates at 30.0° angle.

Composition

Made of steel. Weldon 0.7500 connection. Cutter diameter 1.3750 inches.

Typical Uses

Used in machine tools with Weldon toolpost. Fits in end mill applications. Performs cutting in 34.93mm size.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.3750 34.93MM - 1-3/8
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 60
Depth Of Cut Max 0.6400
Cutting Edge Angle 30.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
