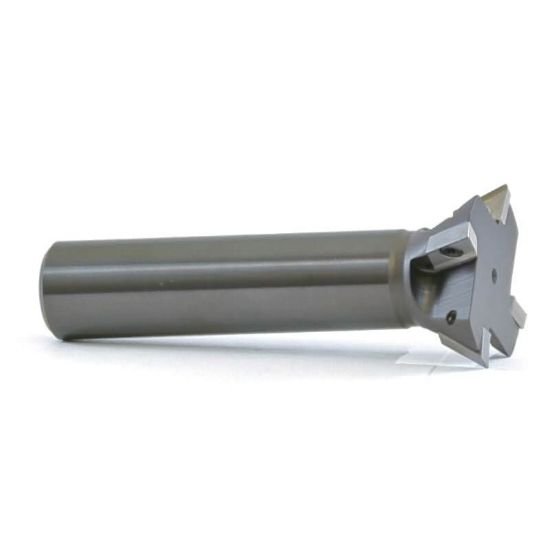

Picture of AB Tools DXL30-1.312 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.3125 33.34mm - 1-5/16Cutter Dia

AB Tools DXL30-1.312 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.3125 33.34mm - 1-5/16Cutter Dia

Part Number: ABTDXL30-1.312

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000049
Vendor: Sussex Tool and Supply
$300.00

AB TOOLS parallelogram end mill with 30.0 degree dove tail, Weldon 0.7500 positive, 1.3125 cutter diameter 33.34mm. Made in USA, steel tool, Weldon connection. Shipping state: CALIFORNIA. Type: End Mill, DXL30-1.312.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DXL30-1.312 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.3125 33.34MM - 1-5/16Cutter Dia DXL30-1.312 DXL30-1.312

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Designed for 30.0° angle. Used in end milling operations.

Composition

Steel tool material. Weldon 0.7500 connection. Parallelogram 30.0° profile.

Typical Uses

End milling in machine tools. Fits Weldon toolpost. Operates in cutting applications with 1-5/16 cutter diameter.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.3125 33.34MM - 1-5/16
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 60
Depth Of Cut Max 0.6400
Cutting Edge Angle 30.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
