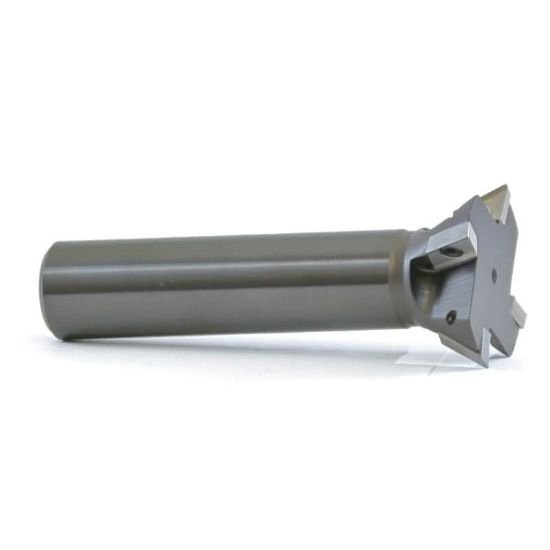

Picture of AB Tools DXL30-1.25 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75mm - 1-1/4Cutter Dia

AB Tools DXL30-1.25 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75mm - 1-1/4Cutter Dia

Part Number: ABTDXL30-1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000048
Vendor: Sussex Tool and Supply
$295.00

AB TOOLS parallelogram end mill with 30.0 degree dove tail. Weldon 0.7500 positive 1.2500 cutter diameter 31.75mm. Made in USA, steel tool, machine side Weldon connection.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DXL30-1.25 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia DXL30-1.25 DXL30-1.25

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Features dove tail shape for precise alignment. Used in milling operations with Weldon connection.

Composition

Made of steel. Includes Weldon 0.7500 connection. Cutter diameter 1.2500 inches.

Typical Uses

Milling tasks on machine with Weldon toolpost. Fits 31.75mm cutter size. Operates in 30.0° angle setup.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.2500 31.75MM - 1-1/4
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 60
Depth Of Cut Max 0.6400
Cutting Edge Angle 30.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
