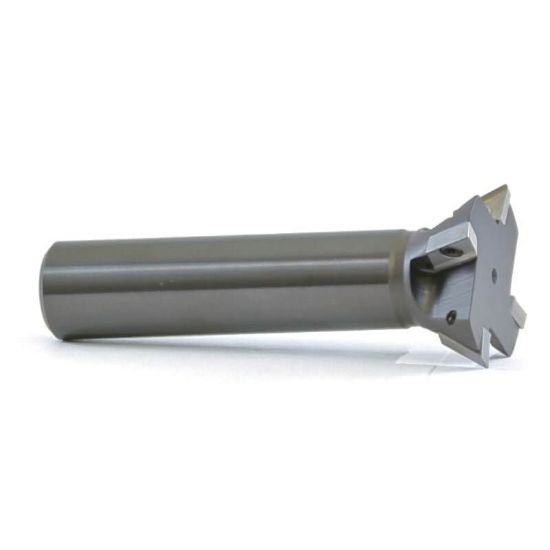

Picture of AB Tools DXL20-1.25 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75mm - 1-1/4Cutter Dia

AB Tools DXL20-1.25 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75mm - 1-1/4Cutter Dia

Part Number: ABTDXL20-1.25 ISO: DXL20-1.25 ANSI:DXL20-1.25
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$295.00
SKU: 1000047

Description

AB TOOLS DXL20-1.25 Parallelogram 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Dove Tail
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style DI
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
CNC Type Tool End Mill
Insert Screw DX-3M
Extractor T8
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 60
Geometry & Angles
Cutting Edge Angle 30.0°
Performance & Capacity
Depth Of Cut Max 0.6500
Materials & Finish
Tool Material Steel
