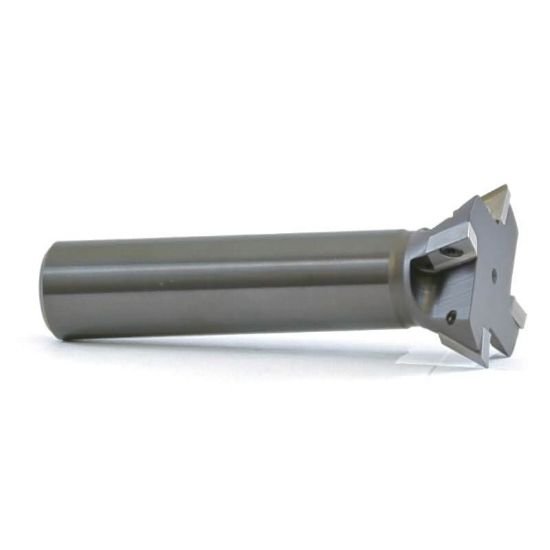

Picture of AB Tools DX20-1 Parallelogram 20.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.0000 25.40mm Cutter Dia

AB Tools DX20-1 Parallelogram 20.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.0000 25.40mm Cutter Dia

Part Number: ABTDX20-1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000028
Vendor: Sussex Tool and Supply
$0.00

AB TOOLS DX20-1 end mill with 20.0 degree parallelogram cutters. Weldon 0.7500 connection, steel material. Made in USA. Toolpost connection type: Weldon.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DX20-1 Parallelogram 20.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia DX20-1 DX20-1

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Designed for dove tail end milling. Cutter diameter 25.40mm.

Composition

Made of steel. Cutter diameter 25.40mm. Weldon connection 0.7500.

Typical Uses

Used in machine tools with Weldon mount. Fits DX20-1 toolpost. Operates in end milling tasks.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 60
Depth Of Cut Max 0.4300
Cutting Edge Angle 20.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
