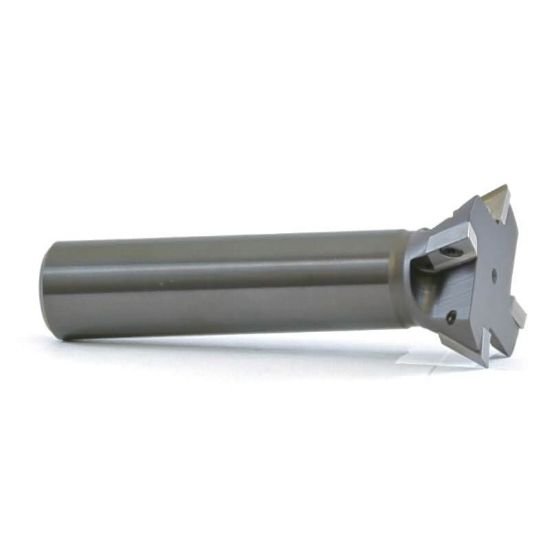

Picture of AB Tools DX10-125 Parallelogram 10.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75mm - 1-1/4Cutter Dia

AB Tools DX10-125 Parallelogram 10.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75mm - 1-1/4Cutter Dia

Part Number: ABTDX10-125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000027
Vendor: Sussex Tool and Supply
$0.00

AB TOOLS DX10-125 end mill has 10.0 degree parallelogram cutters. Weldon 0.7500 positive 1.2500 31.75mm cutter diameter made in USA. Tool post connection is Weldon. Tool material is steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS DX10-125 Parallelogram 10.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia DX10-125 DX10-125

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram profile. Features dove tail design for secure fit. Used in machining operations with Weldon connection.

Composition

Made of steel. Dimensions: 31.75mm cutter diameter. Weldon 0.7500 connection.

Typical Uses

Machining with end mill function. Fits in toolpost with Weldon connection. Operates in machine with 1-1/4 cutter diameter.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Dove Tail
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.2500 31.75MM - 1-1/4
Flutes Or Inserts 4
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Finishing, Semi Finishing
Insert Style DI
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 60
Depth Of Cut Max 0.4400
Cutting Edge Angle 10.0°
Insert Screw DX-3M
Extractor T8
CNC Type Tool End Mill
