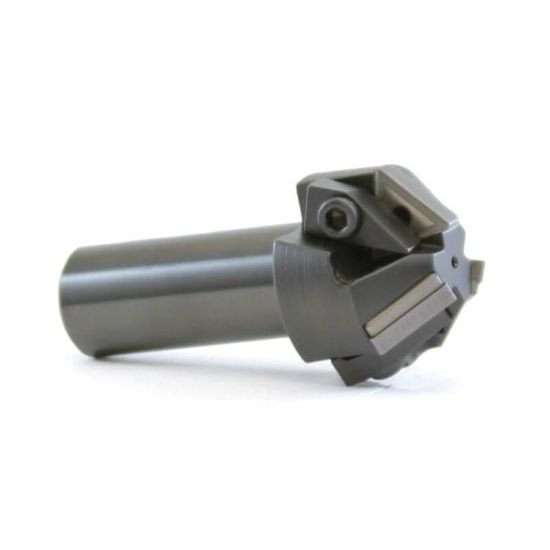

Picture of AB Tools CHA90-4 Triangle 90.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

AB Tools CHA90-4 Triangle 90.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

Part Number: ABTCHA90-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000096
Vendor: Sussex Tool and Supply
$530.00

AB TOOLS steel end mill with 90 degree triangle chamfer profile. Weldon 1.0000 connection. Made in USA. Shipping state: CALIFORNIA.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: AB TOOLS CHA90-4 Triangle 90.0°, Chamfer Mill End Mill Weldon 1.0000 Negative CHA90-4 CHA90-4

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers edges with 90.0° angle. Performs chamfer milling on workpieces. Uses Weldon 1.0000 connection for secure fit.

Composition

Made of steel. Features Weldon 1.0000 connection. Designed for end milling operations.

Typical Uses

Used in milling machines with Weldon toolpost. Applies 90.0° chamfer to edges. Fits in USA-made AB TOOLS systems.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.8000 96.52MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Flutes Or Inserts 4
Type of Tool End Mill
Length Of Cut 0.5200 13.21MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TN
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Negative
Insert Size (IC) 43
Cut Diameter Min 1.7600 44.70MM
Depth Of Cut Max 0.5200
Cut Diameter Max 2.8500 72.39MM
Cutting Edge Angle 90.0°
Clamp Screw 10-32 SHC
Clamp Or Wedge CL5
Seat Or Nest SM-26
