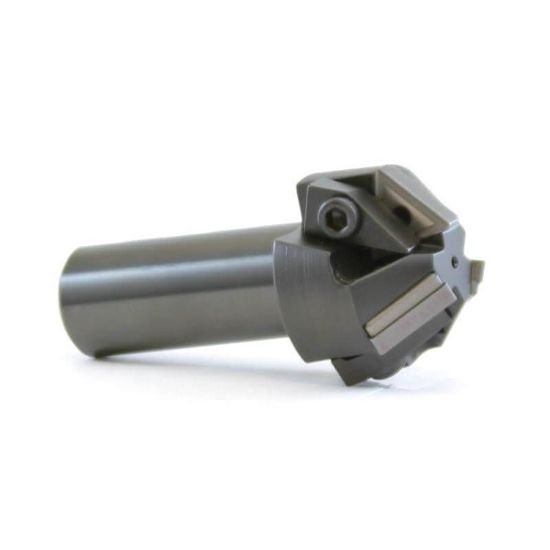

Picture of AB Tools CHA82-3 Triangle 82.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

AB Tools CHA82-3 Triangle 82.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

Part Number: ABTCHA82-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000094
Vendor: Sussex Tool and Supply
$475.00

AB TOOLS triangle end mill with 82.0 degree chamfer. Weldon 1.0000 negative connection. Made in USA of steel. Shipping state: CALIFORNIA.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: AB TOOLS CHA82-3 Triangle 82.0°, Chamfer Mill End Mill Weldon 1.0000 Negative CHA82-3 CHA82-3

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers material with 82.0° angle. Performs cutting on machine with Weldon connection. Used in milling operations.

Composition

Steel tool material. Weldon 1.0000 connection. Triangle shape design.

Typical Uses

Milling with end mill function. Chamfering on machine tool. Fits Weldon toolpost system.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.8000 96.52MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Flutes Or Inserts 3
Type of Tool End Mill
Length Of Cut 0.5700 14.48MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TN
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Negative
Insert Size (IC) 43
Cut Diameter Min 1.0000 25.40MM
Depth Of Cut Max 0.5000
Cut Diameter Max 2.0200 51.31MM
Cutting Edge Angle 82.0°
Clamp Screw 10-32 SHC
Clamp Or Wedge CL5
Seat Or Nest SM-26
