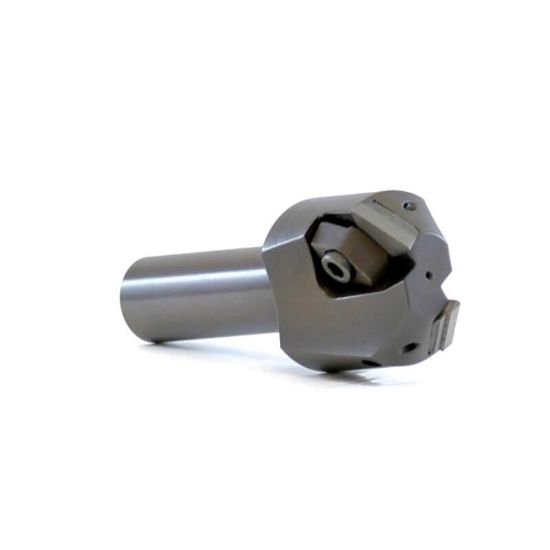

Picture of AB Tools CHA60-3P Triangle 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive

AB Tools CHA60-3P Triangle 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive

Part Number: ABTCHA60-3P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000089
Vendor: Sussex Tool and Supply
$435.00

AB TOOLS triangle end mill with 60 degree chamfer. Weldon 0.7500 positive connection. Made in USA of steel. Tool post connection type: Weldon.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS CHA60-3P Triangle 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive CHA60-3P CHA60-3P

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers edges with 60.0° angle. Used for cutting chamfers on workpieces. Fits Weldon 0.7500 toolpost.

Composition

Made of steel. Tool material is steel. Not specified.

Typical Uses

End milling operations. Chamfer milling tasks. Used in machine tools with Weldon connection.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Flutes Or Inserts 3
Type of Tool End Mill
Length Of Cut 0.4200 10.67MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TP
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 16 "32"
Cut Diameter Min 1.1000 27.94MM
Depth Of Cut Max 0.1900
Cut Diameter Max 1.6000 40.64MM
Cutting Edge Angle 60.0°
Clamp Screw 10-32 SHC
Clamp Or Wedge CL5
Seat Or Nest SM-41
