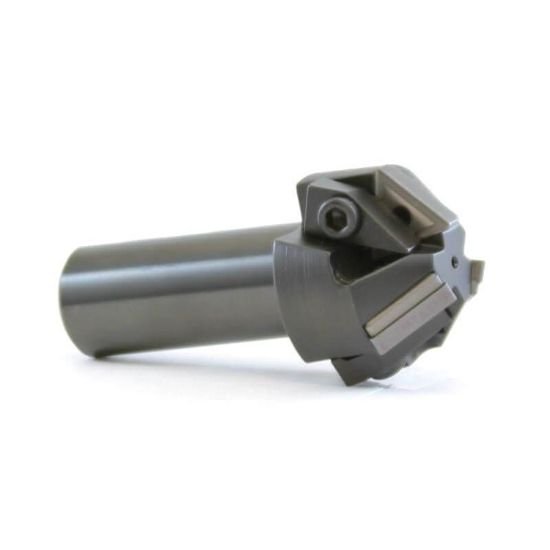

Picture of AB Tools CHA60-3N Triangle 60.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

AB Tools CHA60-3N Triangle 60.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

Part Number: ABTCHA60-3N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000092
Vendor: Sussex Tool and Supply
$475.00

AB TOOLS end mill with 60.0 degree triangle cut. Weldon 1.0000 negative connection made in USA of steel. Made in California. Tool post connection type: Weldon.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: AB TOOLS CHA60-3N Triangle 60.0°, Chamfer Mill End Mill Weldon 1.0000 Negative CHA60-3N CHA60-3N

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers edges with 60.0° angle. Performs chamfer milling on workpieces. Uses Weldon 1.0000 connection for secure fit.

Composition

Made of steel. Steel tool body. Weldon 1.0000 connection.

Typical Uses

Used in milling machines. Chamfers on metal parts. Fits in toolpost with Weldon 1.0000.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.8000 96.52MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Flutes Or Inserts 3
Type of Tool End Mill
Length Of Cut 0.6500 16.51MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TN
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Negative
Insert Size (IC) 43
Cut Diameter Min 1.4000 35.56MM
Depth Of Cut Max 0.4500
Cut Diameter Max 1.6000 40.64MM
Cutting Edge Angle 60.0°
Clamp Screw 10-32 SHC
Clamp Or Wedge CL5
Seat Or Nest SM-26
