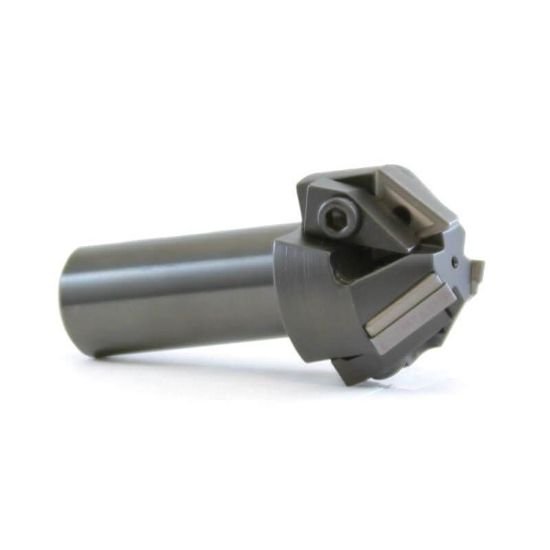

Picture of AB Tools CHA120-3 Triangle 120.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

AB Tools CHA120-3 Triangle 120.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

Part Number: ABTCHA120-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000099
Vendor: Sussex Tool and Supply
$475.00

AB TOOLS triangle end mill with 120 degree chamfer. Weldon 1.0000 negative connection. Made in USA of steel. Shipping state: CALIFORNIA.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: AB TOOLS CHA120-3 Triangle 120.0°, Chamfer Mill End Mill Weldon 1.0000 Negative CHA120-3 CHA120-3

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers edges with 120.0° angle. Performs chamfer milling on workpieces. Uses Weldon connection for secure fit.

Composition

Steel tool material. Weldon 1.0000 connection. CHA120-3 triangle profile.

Typical Uses

Milling chamfers on metal parts. Fits in machine toolpost with Weldon 1.0000. Used in USA-made tools.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.8000 96.52MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Flutes Or Inserts 3
Type of Tool End Mill
Length Of Cut 0.2900 7.37MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style TN
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Negative
Insert Size (IC) 43
Cut Diameter Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.6200
Cut Diameter Max 2.1000 53.34MM
Cutting Edge Angle 120.0°
Clamp Screw 10-32 SHC
Clamp Or Wedge CL5
Seat Or Nest SM-26
