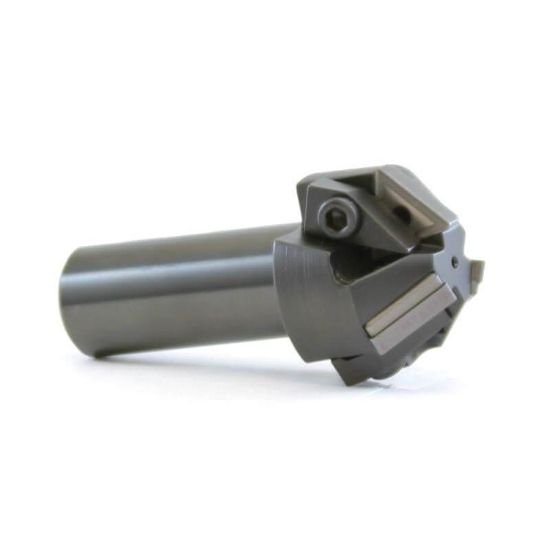

Picture of AB Tools CHA100-3 Triangle 100.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

AB Tools CHA100-3 Triangle 100.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

Part Number: ABTCHA100-3 ISO: CHA100-3 ANSI:CHA100-3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1000097
Vendor: Sussex Tool and Supply
$475.00

Description

AB TOOLS CHA100-3 Triangle 100.0°, Chamfer Mill End Mill Weldon 1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Clamp Screw 10-32 SHC
Clamp/Wedge CL5
Seat/Nest SM26
Dimensions & Sizing
Overall Length 3.8000 96.52MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Length Of Cut 0.4900 12.45MM
Insert Size Ic 43
Geometry & Angles
Cutting Edge Angle 100.0°
Performance & Capacity
Cut Dia Min 0.8200 20.83MM
Depth Of Cut Max 0.5800
Cut Dia Max 1.9900 50.55MM
Materials & Finish
Tool Material Steel
