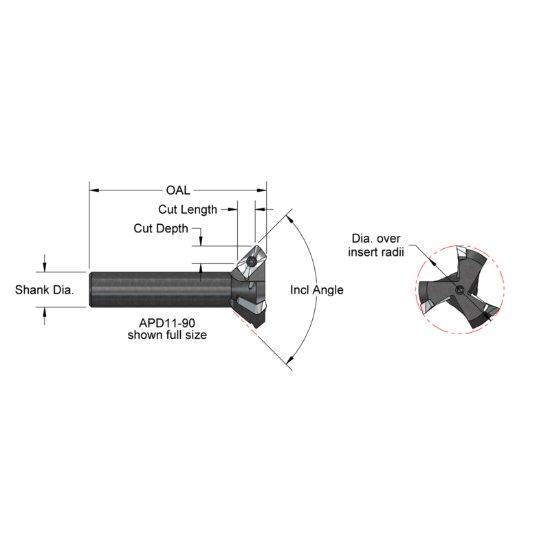

Picture of AB Tools APD16-120 Parallelogram 120.0°, Back Chamfer, Chamfering, End Mill End Mill Cylindrical 0.7500 Positive 2.0000 50.80mm Cutter Dia

AB Tools APD16-120 Parallelogram 120.0°, Back Chamfer, Chamfering, End Mill End Mill Cylindrical 0.7500 Positive 2.0000 50.80mm Cutter Dia

Part Number: ABTAPD16-120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000199
Vendor: Sussex Tool and Supply
$460.00

Parallelogram back chamfer chamfering cylindrical 0.7500 positive 2.0000 50.80mm cutter dia AB TOOLS. Machine side toolpost connection cylindrical. Made in USA, shipping state California. Tool material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS APD16-120 Parallelogram 120.0°, Back Chamfer, Chamfering, End Mill End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia APD16-120 APD16-120

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers end mill with 120.0° parallelogram angle. Performs back chamfering on workpiece edges. Cutter diameter is 50.80mm.

Composition

Steel tool material. Cylindrical 0.7500 connection. Cutter diameter 50.80mm.

Typical Uses

Used in chamfering operations. Mounted in toolpost with cylindrical connection. Operates on milling machines with standard toolpost.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Back Chamfer, Chamfering
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 2.0000 50.80MM
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 16
Cut Diameter Min 2.0000 50.80MM
Depth Of Cut Max 0.4800
Cutting Edge Angle 120.0°
Insert Screw 4MM-AP
Extractor T8
