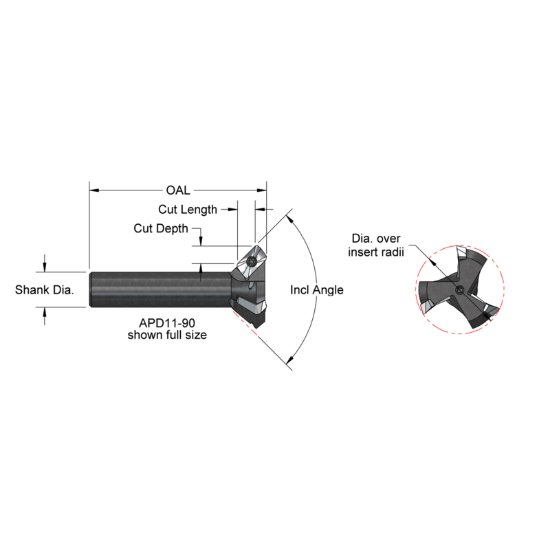

Picture of AB Tools APD11-140 Parallelogram 140.0°, Back Chamfer, Chamfering, End Mill End Mill Cylindrical 0.5000 Positive 1.3750 34.93mm - 1-3/8Cutter Dia

AB Tools APD11-140 Parallelogram 140.0°, Back Chamfer, Chamfering, End Mill End Mill Cylindrical 0.5000 Positive 1.3750 34.93mm - 1-3/8Cutter Dia

Part Number: ABTAPD11-140

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000195
Vendor: Sussex Tool and Supply
$275.00

Parallelogram back chamfer chamfering cylindrical 0.5000 positive 1.3750 34.93mm 1-3/8 cutter dia. Brand AB TOOLS. Made in USA, shipping state California. Tool material steel, machine side connection cylindrical.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.5000

Grades & Coatings

  • Alternate Description: AB TOOLS APD11-140 Parallelogram 140.0°, Back Chamfer, Chamfering, End Mill End Mill Cylindrical 0.5000 Positive 1.3750 34.93MM - 1-3/8Cutter Dia APD11-140 APD11-140.

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers end mill with 140.0° parallelogram angle. Performs back chamfering on workpiece. Designed for cylindrical end mill use.

Composition

Steel tool material. Cylindrical 0.5000 connection. Made in USA.

Typical Uses

Used in machining with end mill. Chamfering operations on metal. Fits toolpost with cylindrical mount.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Back Chamfer, Chamfering
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.5000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 1.3750 34.93MM - 1-3/8
Flutes Or Inserts 3
Type of Tool End Mill
Length Of Cut 0.1100 2.79MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 11
Cut Diameter Min 1.3750 34.93MM - 1-3/8
Depth Of Cut Max 0.3150
Cutting Edge Angle 140.0°
Insert Screw 2.5MM-AP
Extractor T8
