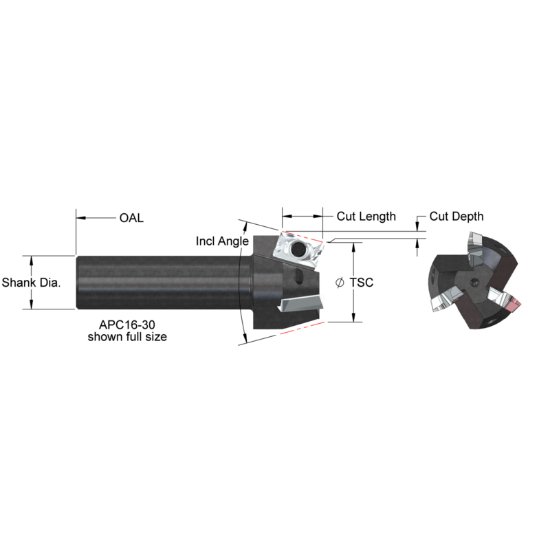

Picture of AB Tools APC16-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40mm Cutter Dia

AB Tools APC16-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40mm Cutter Dia

Part Number: ABTAPC16-82 ISO: APC16-82 ANSI:APC16-82
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1000187
Vendor: Sussex Tool and Supply
$460.00

Description

AB TOOLS APC16-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Screw 4MM-AP
Extractor T8
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 82.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3700
Materials & Finish
Tool Material Steel
