  • AB TOOLS APC16-30 Parallelogram 30.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

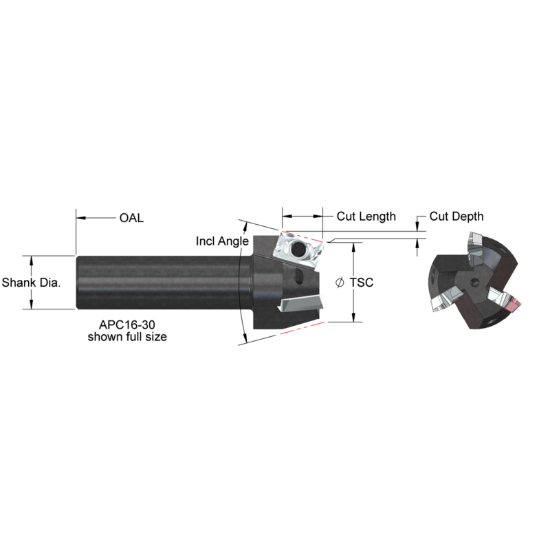

Picture of AB TOOLS APC16-30 Parallelogram 30.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

AB TOOLS APC16-30 Parallelogram 30.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

ANSI: APC16-30

ISO: APC16-30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPC16-30
Delivery date: 3-5 days
$460.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Additional Key Information 1 Chamfer Mill, 30.0°
Application Chamfering
Shipping State California
Insert Type Positive
Additional Key Information 2 Milling Cutter
Sold by Pieces 1
Additional Key Information 3 30.0°
Insert Application General Purpose
Uncategorized
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Machine Side CYLINDRICAL0.7500
Insert Size Ic 16
Depth Of Cut Max 0.1400
Machine Side Connection Type Cylindrical
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4MM-AP
