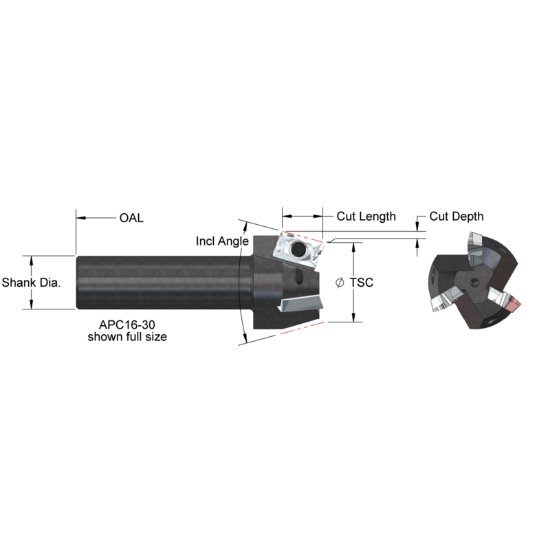

Picture of AB Tools APC16-30 Parallelogram 30.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40mm Cutter Dia

AB Tools APC16-30 Parallelogram 30.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40mm Cutter Dia

Part Number: ABTAPC16-30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000185
Vendor: Sussex Tool and Supply
$460.00

AB TOOLS APC16-30 end mill has 30 degree chamfer. Cutter diameter is 0.7500 inch or 25.40mm. Machine post connection is cylindrical. Tool made in USA, steel material.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS APC16-30 Parallelogram 30.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia APC16-30 APC16-30

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with parallelogram shape. Performs chamfer milling at 30.0° angle. Cylindrical end mill with 0.7500 diameter.

Composition

Steel tool material. Cylindrical connection 0.7500. Cutter diameter 25.40mm.

Typical Uses

Used in machining operations. Fits toolpost with cylindrical mount. Applies to end milling tasks.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 16
Cut Diameter Min 1.0000 25.40MM
Depth Of Cut Max 0.1400
Cutting Edge Angle 30.0°
Insert Screw 4MM-AP
Extractor T8
