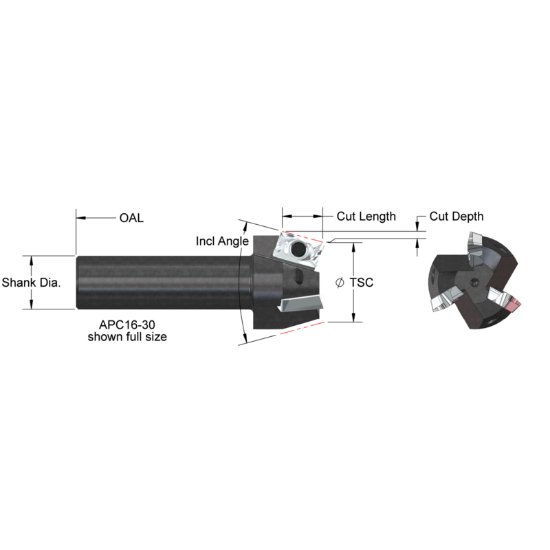

Picture of AB Tools APC16-120 Parallelogram 120.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40mm Cutter Dia

AB Tools APC16-120 Parallelogram 120.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40mm Cutter Dia

Part Number: ABTAPC16-120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000190
Vendor: Sussex Tool and Supply
$495.00

Parallelogram 0 chamfer cylindrical 7500 positive 1 0000 25 40mm cutter dia brand alternate description shipping state california made in usa yes type of tool machine side toolpost connection cylindrical0 material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS APC16-120 Parallelogram 120.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia APC16-120 APC16-120

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts chamfered edges with parallelogram profile. Performs end milling operations. Cutter diameter is 25.40mm.

Composition

Steel material. Cylindrical connection. 0.7500 diameter.

Typical Uses

Used in machine tools with toolpost. Fits cylindrical toolpost. Operates in milling processes.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 16
Cut Diameter Min 1.0000 25.40MM
Depth Of Cut Max 0.4900
Cutting Edge Angle 120.0°
Insert Screw 4MM-AP
Extractor T8
