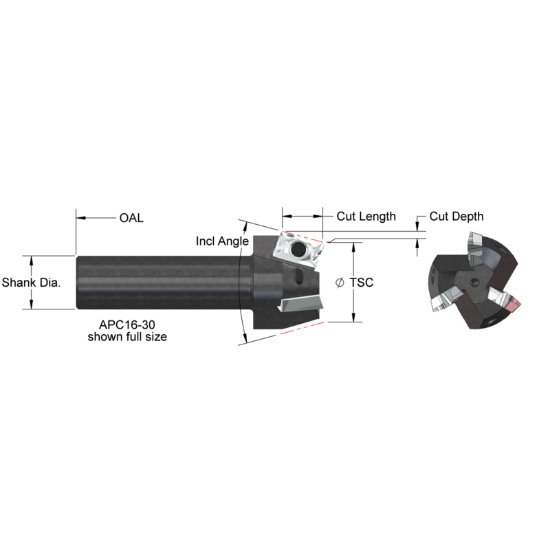

Picture of AB Tools APC11-60 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05mm - 3/4Cutter Dia

AB Tools APC11-60 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05mm - 3/4Cutter Dia

Part Number: ABTAPC11-60

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000179
Vendor: Sussex Tool and Supply
$275.00

AB TOOLS APC11-60 end mill has 60 degree chamfer, cylindrical 0.5000 positive, 0.7500 cutter dia. Made in USA, steel tool, cylindrical machine side connection. Shipping state is CALIFORNIA. Tool type is end mill.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.5000

Grades & Coatings

  • Alternate Description: AB TOOLS APC11-60 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4Cutter Dia APC11-60 APC11-60

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Creates chamfers with 60.0° parallelogram cut. Performs cylindrical milling on 0.5000 diameter. Positive 0.7500 depth cut with 19.05mm size.

Composition

Steel tool material. Cylindrical 0.5000 connection. 19.05mm cutter diameter.

Typical Uses

Used in machine toolpost with cylindrical mount. For chamfer milling at 60.0° angle. Fits 3/4 cutter dia applications.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.5000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 11
Cut Diameter Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1650
Cutting Edge Angle 60.0°
Insert Screw 2.5MM-AP
Extractor T8
