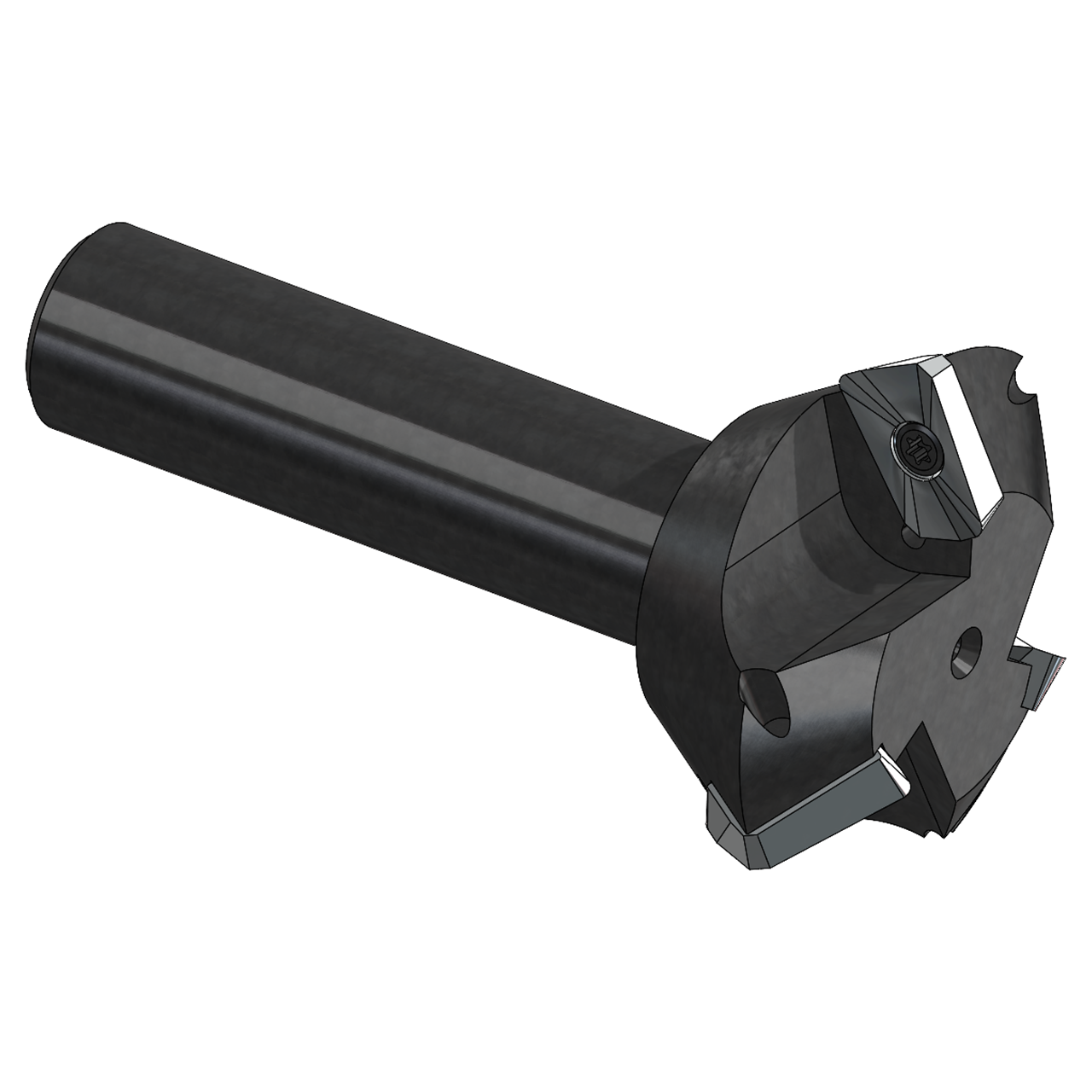

Picture of AB Tools APC11-150 Parallelogram 150.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05mm - 3/4Cutter Dia

AB Tools APC11-150 Parallelogram 150.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05mm - 3/4Cutter Dia

Part Number: ABTAPC11-150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000184
Vendor: Sussex Tool and Supply
$325.00

AB TOOLS APC11-150 end mill has 150 degree chamfer. Cylindrical 0.7500 inch tool, 3 quarter cutter diameter. Made in USA, steel tool, machine side cylindrical connection.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS APC11-150 Parallelogram 150.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia APC11-150 APC11-150

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfer Mill End Mill cuts with 150.0° parallelogram angle. Performs cylindrical cutting with 0.7500 diameter. Positive 0.7500 cutter diameter ensures precise edge formation.

Composition

Steel tool material. Cylindrical 0.7500 connection. Made in Usa.

Typical Uses

Used in machine tools with cylindrical toolpost. Fits 3/4 cutter dia applications. Performs chamfer milling operations.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 11
Cut Diameter Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3250
Cutting Edge Angle 150.0°
Insert Screw 2.5MM-AP
Extractor T8
