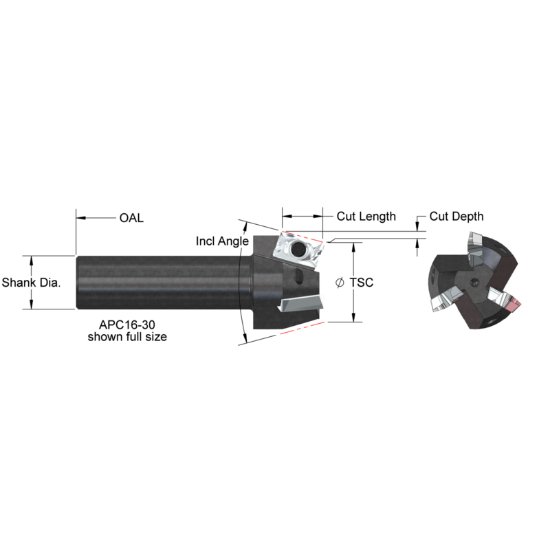

Picture of AB Tools APC11-120 Parallelogram 120.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05mm - 3/4Cutter Dia

AB Tools APC11-120 Parallelogram 120.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05mm - 3/4Cutter Dia

Part Number: ABTAPC11-120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: 1000183
Vendor: Sussex Tool and Supply
$325.00

Parallelogram 0 chamfer cylindrical 7500 positive 19 05mm 3 4cutter dia brand alternate description shipping state california made in usa yes type of tool machine side toolpost connection cylindrical0 material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: AB TOOLS APC11-120 Parallelogram 120.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia APC11-120 APC11-120

Other Details

  • Brand: AB TOOLS
  • Shipping State: CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers end mill cuts 120.0° parallelogram shape. Performs cylindrical milling with 0.7500 diameter. Positive cutting edge ensures precise tool engagement.

Composition

Steel tool material. Cylindrical 0.7500 diameter. Made in USA.

Typical Uses

Used in machine toolpost with cylindrical connection. Operates on end mill functions. Applies in 19.05mm 3/4 cutter diameter tasks.

Products specifications
Attribute name Attribute value
Shipping State CALIFORNIA
Cutter Type Chamfer Mill
Made In USA YES
Tool Material Steel
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 11
Cut Diameter Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2900
Cutting Edge Angle 120.0°
Insert Screw 2.5MM-AP
Extractor T8
